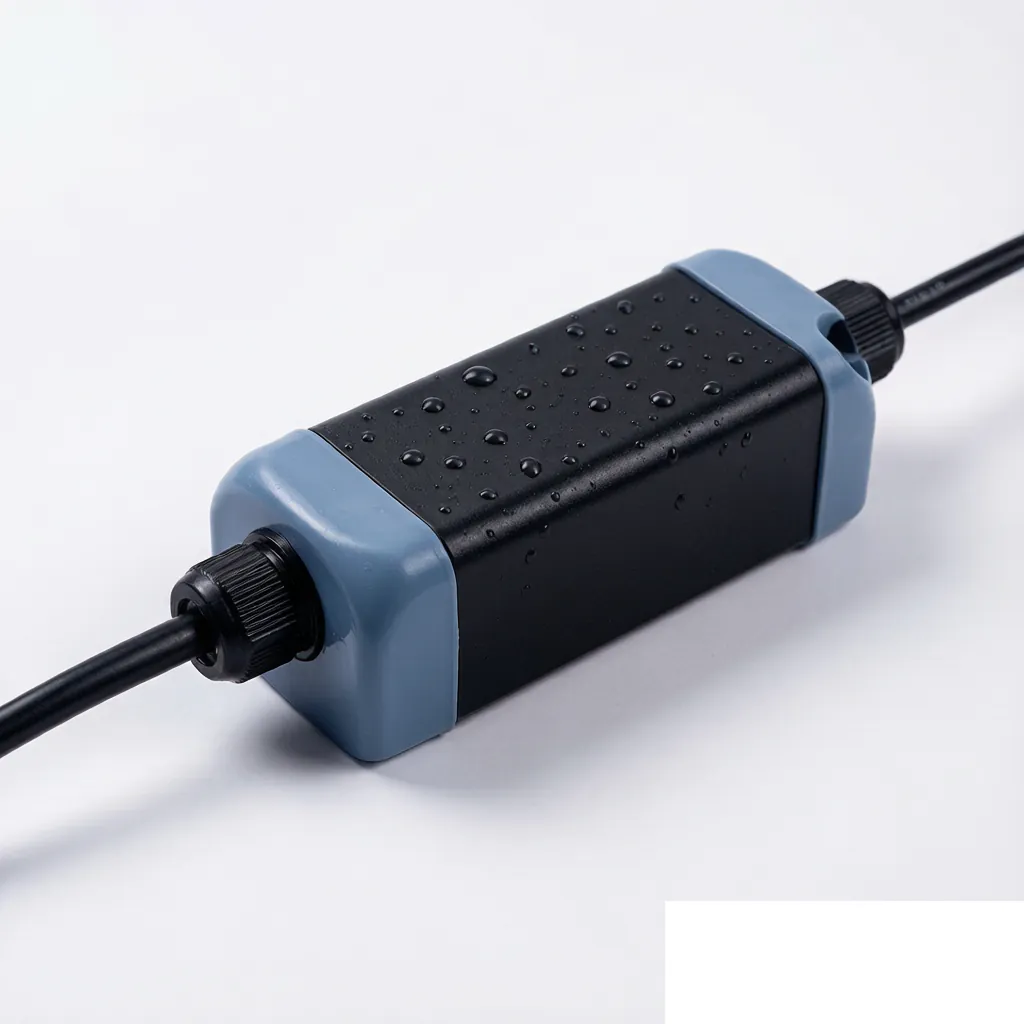

IP67 Waterproof LED Drivers (10-400W)

Name: IP67 Waterproof LED Drivers (10-400W)
Brand: CHUGAO Power
Availability: InStock

Fully potted IP67/IP68 waterproof LED drivers, 10W-400W, for outdoor and wet use.

Overview

Waterproof drivers for outdoor LED strips, fountains, and marine lighting. Built to survive wet environments.

Power range: 10W - 400W
Protection: IP67 / IP68
Input: AC 90-305V
Output: DC 12/24V

Specifications

Parameter	Detail
Power range	10W - 400W
Ingress protection	IP67 / IP68
Input voltage	AC 90-305V
Output voltage	DC 12/24V
Key features	Fully sealed silicone potting, salt-spray tested

Key features

⚡

Wide input

AC 90-305V — one SKU covers most international sites.

🌊

Dual output

DC 12/24V options fit the common LED strips and modules.

🔒

Four protections

Over-voltage, over-current, over-temperature and short-circuit.

✅

Certified

CE and RoHS standard; UL / BIS available per model.

Electrical & environmental

Parameter	Detail
Efficiency	≥87%
Power factor	≥0.95
Ripple and noise	≤100mV
Ingress protection	IP67 / IP68 (potting)
Surge protection	6kV
Operating temperature	-30°C to +60°C
MTBF	80,000 hours
Warranty	5 years

Available power ratings

Power	Output voltage
10W	12V / 24V
20W	12V / 24V
30W	12V / 24V
60W	12V / 24V
100W	12V / 24V
150W	12V / 24V
200W	12V / 24V
300W	12V / 24V
400W	12V / 24V

Request full specification sheet (PDF)

Frequently asked questions

Can an IP67 driver be submerged?

IP67 resists brief immersion; IP68 models handle continuous submersion. For fountains and pools choose the IP68 version, and we will confirm the depth rating.

How do I wire a waterproof driver outdoors?

Use waterproof connectors and keep joints inside a sealed junction box. We supply IP67 cable glands so the entry points stay watertight.

Where IP67 drivers are used

IP67 and IP68 drivers go where water is. Use them for outdoor LED strips, garden and landscape lighting, fountains, pools, and marine or coastal installs. The fully sealed silicone potting blocks water and salt spray.

How to size a waterproof driver

Total the LED load, add a 20% margin, and pick a model rated above that sum. For hot environments or sealed enclosures, leave extra headroom so the driver runs cool. The 190-340V input covers most international sites.

What is built in

Sealed potting, salt-spray resistance, and over-voltage, over-current, over-temperature, and short-circuit protection. Rated for full outdoor and wet use - not for permanent submersion unless the model is marked IP68.

Which line fits your project?

Choose IP67 when the driver will sit where water collects — outdoor strips, landscape and garden lighting, fountains, pools, and coastal or marine installs. The fully potted silicone enclosure blocks water jets, driving rain, and salt spray, and 6kV surge protection handles exposed sites. IP65 costs less and runs cooler, but it only resists rain and dust. Under a roof or inside a sealed sign, IP65 is enough; in the open or near standing water, pay for IP67.

Compare all CHUGAO lines

Four product lines cover most low-voltage LED jobs. Pick by power, protection, and input range.

Line	LED Adapters (5-200W)	Indoor LED Drivers (50-400W)	IP67 Waterproof LED Drivers (10-400W)	IP65 Rainproof LED Drivers (100-600W)
Power range	5W - 200W	50W - 400W	10W - 400W	100W - 600W
Ingress protection	IP20 (indoor)	IP20	IP67 / IP68	IP65
Input voltage	AC 100-240V universal	AC 190-264V	AC 90-305V	AC 190-264V
Output voltage	DC 12/24/36/48V	DC 12/24V	DC 12/24V	DC 12/24V

Manufacturing & quality control

Production runs on four dedicated lines fed by SMT assembly and wave soldering, then finished on in-house potting and enclosure lines. Each driver moves through incoming component inspection and automated ICT, then a 48-hour full-load burn-in at elevated temperature before it is packed. On the line we check output voltage, ripple, efficiency, and the four protective functions — over-voltage, over-current, over-temperature, and short-circuit — so a weak unit is caught before it reaches you.

Certifications & compliance

CE and RoHS on every model. UL is per model and costs extra. We send certificate PDFs before you order. BIS for India is available on request.

Every CHUGAO model ships with the documentation your market requires. Certificate PDFs are sent before you place an order, so you can clear customs and meet local electrical rules without surprises.

What is the minimum order quantity?

50 pieces per model for stock items. 500 pieces for custom OEM. We do not accept 1-piece orders.

What is the lead time?

Stock: 3-7 days. OEM: 25-30 days. Samples: 5 days, charged plus shipping, refunded on a bulk order.

What is the warranty?

3 years on stock items. OEM warranty is defined in the contract. Warranty does not cover lightning, water damage, or incorrect wiring.

OEM and ODM

Our engineering team supports OEM and ODM changes to output voltage, enclosure size, connector type, and cable length. Where a project calls for it, we can add dimming control (0-10V or PWM) or adjust the input range. Custom samples are built from your spec sheet and verified against the same test routine used in mass production, so what you approve is what ships.

Why buy factory direct

Buying from the manufacturer removes the trader margin and shortens the path from a design change to shipment. You can also request the exact certificate package your market needs instead of a generic one. Every shipment includes a commercial invoice, packing list, certificate of origin, and CE/RoHS reports, with original documents shipped with the goods.

We supply distributors, lighting brands, and project contractors in 42 countries, with the strongest presence in Europe, North America, the Middle East, and Southeast Asia. Sales and engineering reply in English, Spanish, French, Russian, Arabic, and Chinese, and aim to respond within 1 hour during China business hours (GMT+8).
