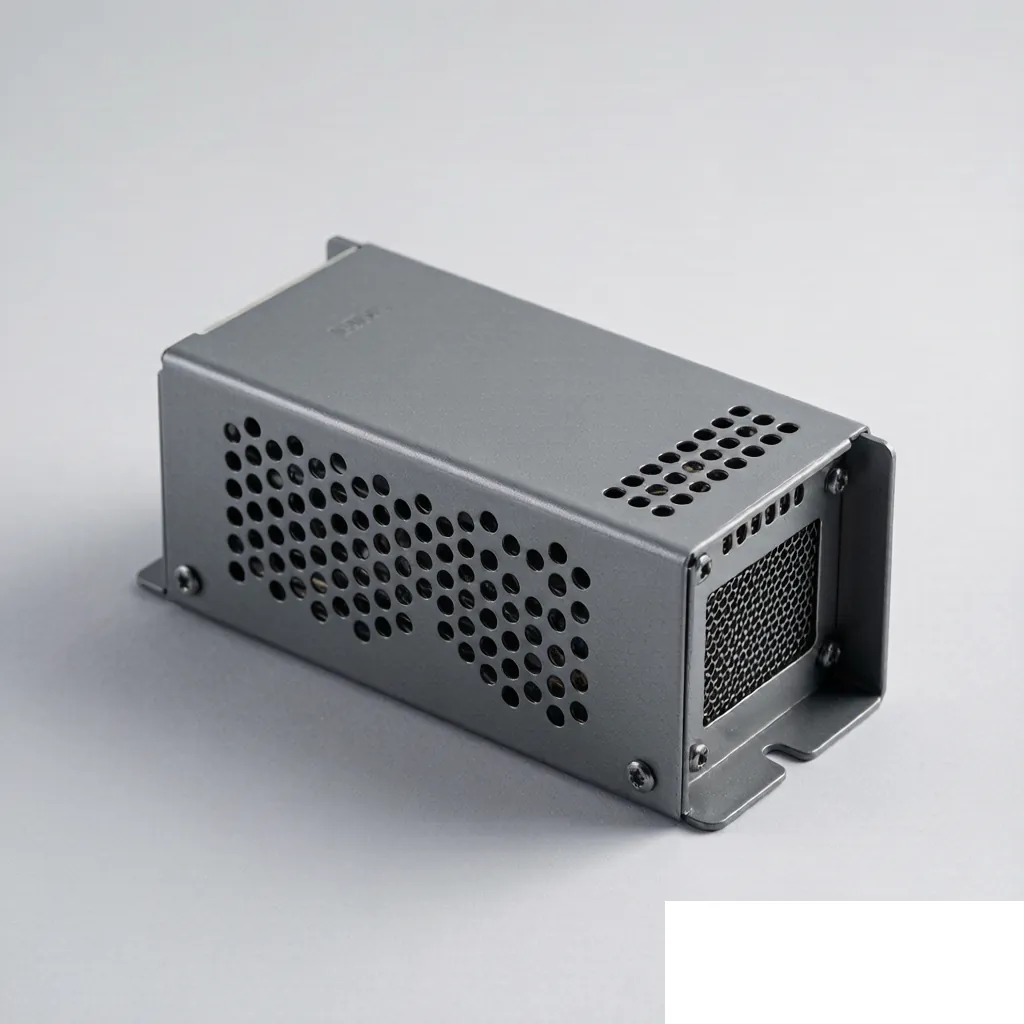

Indoor LED Drivers (50-400W)

Name: Indoor LED Drivers (50-400W)
Brand: CHUGAO Power
Availability: InStock

Built-in PFC indoor LED drivers, 50W-400W, for ceiling and panel lights.

Overview

Indoor LED drivers for ceiling lights and panel lights. High efficiency with active power-factor correction.

Power range: 50W - 400W
Protection: IP20
Input: AC 190-264V
Output: DC 12/24V

Specifications

Parameter	Detail
Power range	50W - 400W
Ingress protection	IP20
Input voltage	AC 190-264V
Output voltage	DC 12/24V
Key features	Built-in active PFC, fan-less silent operation

Key features

⚡

Wide input

AC 190-264V — one SKU covers most international sites.

🌊

Dual output

DC 12/24V options fit the common LED strips and modules.

🔒

Four protections

Over-voltage, over-current, over-temperature and short-circuit.

✅

Certified

CE and RoHS standard; UL / BIS available per model.

Electrical & environmental

Parameter	Detail
Efficiency	≥88%
Power factor	≥0.95
Ripple and noise	≤100mV
Surge protection	4kV
Operating temperature	-30°C to +60°C
MTBF	100,000 hours
Warranty	5 years

Available power ratings

Power	Output voltage
50W	12V / 24V
75W	12V / 24V
100W	12V / 24V
150W	12V / 24V
200W	12V / 24V
300W	12V / 24V
400W	12V / 24V

Request full specification sheet (PDF)

Frequently asked questions

Do these drivers support dimming?

Selected models support 0-10V or PWM dimming. Tell us your control system and we will specify the correct driver.

Can they be mounted above a ceiling?

Yes. The IP20 drivers are made for dry indoor use such as above ceilings and inside fixtures. Leave some air space and do not bury them in insulation.

Where indoor drivers are used

Indoor drivers feed ceiling lights, panel lights, troffers, and linear fixtures inside buildings. Built-in active PFC keeps the power factor high, which matters on commercial projects that put many fittings on one circuit.

How to size an indoor driver

Match the driver wattage to the total LED load plus a 20% margin, and confirm the output voltage (usually 12V or 24V DC) matches the fixture. For dimming projects, tell us the control type so we spec the right model.

What is built in

Active PFC, fan-less silent operation, and protection against over-voltage, over-current, over-temperature, and short-circuit. The IP20 enclosure is for dry indoor locations only.

Which line fits your project?

Choose an indoor driver when the fitting is hard-wired into a building — ceiling lights, panel lights, troffers, and linear fixtures. You get active power-factor correction, fan-less silent running, a 5-year warranty, and up to 400W in a case that mounts in a ceiling void or inside the fixture body. These are IP20, so they stay in dry interiors. If the install faces rain, dust, or wash-down, use the IP65 rainproof line for signage or the IP67 waterproof line for open outdoor sites.

Compare all CHUGAO lines

Four product lines cover most low-voltage LED jobs. Pick by power, protection, and input range.

Line	LED Adapters (5-200W)	Indoor LED Drivers (50-400W)	IP67 Waterproof LED Drivers (10-400W)	IP65 Rainproof LED Drivers (100-600W)
Power range	5W - 200W	50W - 400W	10W - 400W	100W - 600W
Ingress protection	IP20 (indoor)	IP20	IP67 / IP68	IP65
Input voltage	AC 100-240V universal	AC 190-264V	AC 90-305V	AC 190-264V
Output voltage	DC 12/24/36/48V	DC 12/24V	DC 12/24V	DC 12/24V

Manufacturing & quality control

Production runs on four dedicated lines fed by SMT assembly and wave soldering, then finished on in-house potting and enclosure lines. Each driver moves through incoming component inspection and automated ICT, then a 48-hour full-load burn-in at elevated temperature before it is packed. On the line we check output voltage, ripple, efficiency, and the four protective functions — over-voltage, over-current, over-temperature, and short-circuit — so a weak unit is caught before it reaches you.

Certifications & compliance

CE and RoHS on every model. UL is per model and costs extra. We send certificate PDFs before you order. BIS for India is available on request.

Every CHUGAO model ships with the documentation your market requires. Certificate PDFs are sent before you place an order, so you can clear customs and meet local electrical rules without surprises.

What is the minimum order quantity?

50 pieces per model for stock items. 500 pieces for custom OEM. We do not accept 1-piece orders.

What is the lead time?

Stock: 3-7 days. OEM: 25-30 days. Samples: 5 days, charged plus shipping, refunded on a bulk order.

What is the warranty?

3 years on stock items. OEM warranty is defined in the contract. Warranty does not cover lightning, water damage, or incorrect wiring.

OEM and ODM

Our engineering team supports OEM and ODM changes to output voltage, enclosure size, connector type, and cable length. Where a project calls for it, we can add dimming control (0-10V or PWM) or adjust the input range. Custom samples are built from your spec sheet and verified against the same test routine used in mass production, so what you approve is what ships.

Why buy factory direct

Buying from the manufacturer removes the trader margin and shortens the path from a design change to shipment. You can also request the exact certificate package your market needs instead of a generic one. Every shipment includes a commercial invoice, packing list, certificate of origin, and CE/RoHS reports, with original documents shipped with the goods.

We supply distributors, lighting brands, and project contractors in 42 countries, with the strongest presence in Europe, North America, the Middle East, and Southeast Asia. Sales and engineering reply in English, Spanish, French, Russian, Arabic, and Chinese, and aim to respond within 1 hour during China business hours (GMT+8).
