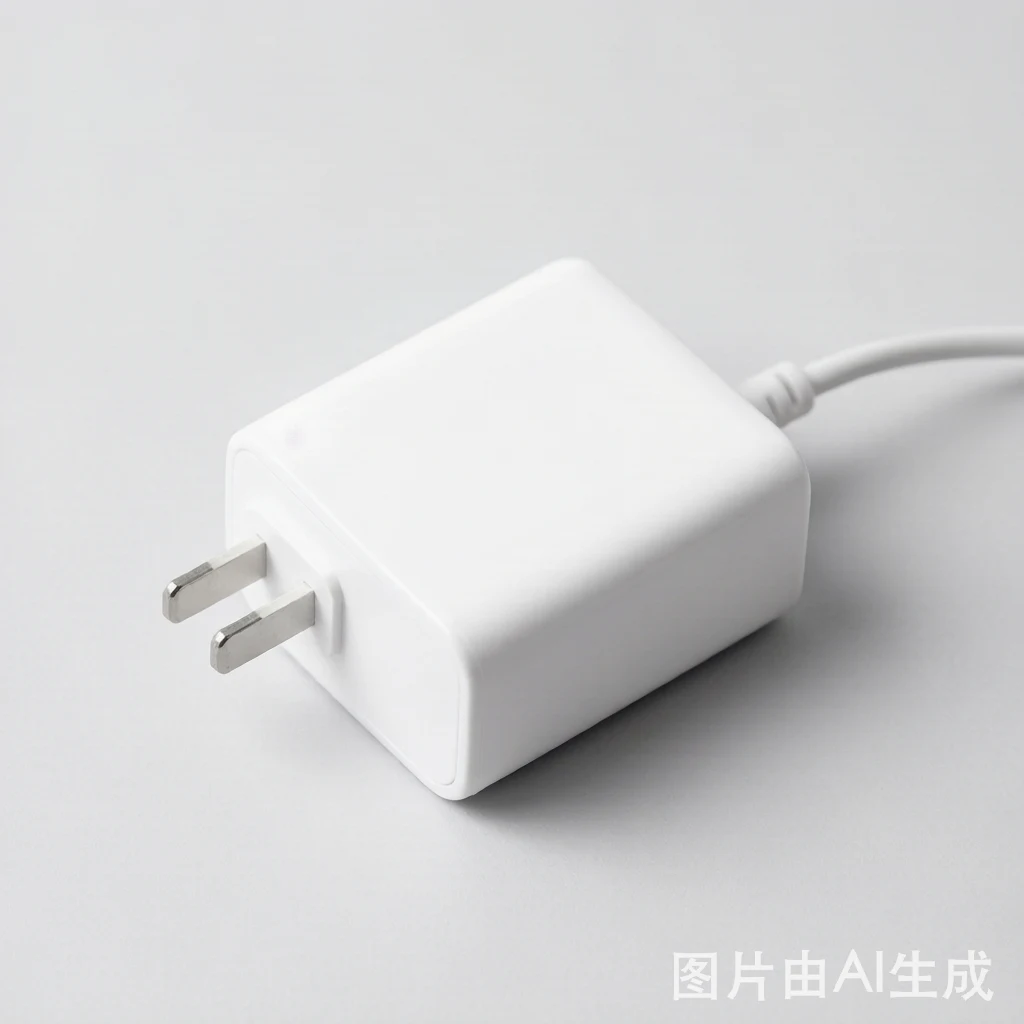

LED Adapters (5-200W)

Name: LED Adapters (5-200W)
Brand: CHUGAO Power
Availability: InStock

AC/DC adapters for LED strips and modules, 5W-200W, 100-240V input.

Overview

Compact AC/DC adapters for LED strips, modules, and signage. CE/UL available, 3-year warranty.

Power range: 5W - 200W
Protection: IP20 (indoor)
Input: AC 100-240V universal
Output: DC 12/24/36/48V

Specifications

Parameter	Detail
Power range	5W - 200W
Ingress protection	IP20 (indoor)
Input voltage	AC 100-240V universal
Output voltage	DC 12/24/36/48V
Key features	Wall-mount and desktop, AC 100-240V universal input, DC 12/24/36/48V output

Key features

⚡

Wide input

AC 100-240V universal — one SKU covers most international sites.

🌊

Dual output

DC 12/24/36/48V options fit the common LED strips and modules.

🔒

Four protections

Over-voltage, over-current, over-temperature and short-circuit.

✅

Certified

CE and RoHS standard; UL / BIS available per model.

Electrical & environmental

Parameter	Detail
Efficiency	≥83%
Ripple and noise	≤120mV
Surge protection	4kV
Operating temperature	-20°C to +50°C
MTBF	50,000 hours
Warranty	3 years

Available power ratings

Power	Output voltage
5W	12V
12W	12V / 24V
24W	12V / 24V
36W	12V / 24V / 36V
60W	12V / 24V
100W	12V / 24V / 36V / 48V
150W	12V / 24V / 36V / 48V
200W	12V / 24V / 36V / 48V

Request full specification sheet (PDF)

Frequently asked questions

Can I use one adapter for both 12V and 24V strips?

No. Choose the output voltage that matches your LED. We make 12V, 24V, 36V and 48V models - check the label on your strip before ordering.

Do you fit a plug for my country?

The adapter accepts 100-240V worldwide. We fit the local plug or AC cord for your market (US, EU, UK, AU and others) at no extra charge.

Where adapters are used

AC/DC adapters power 12V and 24V LED strips, LED modules, edge-lit signs, and small fixtures that plug into a wall outlet. The 100-240V universal input means one SKU ships worldwide - you only change the local plug or cord.

How to size an adapter

Add up the wattage of every LED you will run, then add a 20% margin so the adapter runs below its rated load. For example, 80W of strips needs at least a 100W adapter. Running below 80% load keeps the adapter cooler and extends its life.

What is built in

Each adapter has over-voltage, over-current, over-temperature, and short-circuit protection. Output options of 12V, 24V, 36V, and 48V cover most LED strips and modules.

Which line fits your project?

Choose an adapter when the LED load sits close to a wall socket — strips under cabinets, edge-lit signs, display cases, and small fixtures that plug in. Adapters are the smallest and lowest-cost way to get from mains to 12V or 24V DC, and the 100-240V universal input means one SKU ships to any market. Step up to the indoor driver line once you pass 200W, need a hard-wired enclosure inside a ceiling or fixture, or need active PFC for a commercial project with many fittings on one circuit.

Compare all CHUGAO lines

Four product lines cover most low-voltage LED jobs. Pick by power, protection, and input range.

Line	LED Adapters (5-200W)	Indoor LED Drivers (50-400W)	IP67 Waterproof LED Drivers (10-400W)	IP65 Rainproof LED Drivers (100-600W)
Power range	5W - 200W	50W - 400W	10W - 400W	100W - 600W
Ingress protection	IP20 (indoor)	IP20	IP67 / IP68	IP65
Input voltage	AC 100-240V universal	AC 190-264V	AC 90-305V	AC 190-264V
Output voltage	DC 12/24/36/48V	DC 12/24V	DC 12/24V	DC 12/24V

Manufacturing & quality control

Production runs on four dedicated lines fed by SMT assembly and wave soldering, then finished on in-house potting and enclosure lines. Each driver moves through incoming component inspection and automated ICT, then a 48-hour full-load burn-in at elevated temperature before it is packed. On the line we check output voltage, ripple, efficiency, and the four protective functions — over-voltage, over-current, over-temperature, and short-circuit — so a weak unit is caught before it reaches you.

Certifications & compliance

CE and RoHS on every model. UL is per model and costs extra. We send certificate PDFs before you order. BIS for India is available on request.

Every CHUGAO model ships with the documentation your market requires. Certificate PDFs are sent before you place an order, so you can clear customs and meet local electrical rules without surprises.

What is the minimum order quantity?

50 pieces per model for stock items. 500 pieces for custom OEM. We do not accept 1-piece orders.

What is the lead time?

Stock: 3-7 days. OEM: 25-30 days. Samples: 5 days, charged plus shipping, refunded on a bulk order.

What is the warranty?

3 years on stock items. OEM warranty is defined in the contract. Warranty does not cover lightning, water damage, or incorrect wiring.

OEM and ODM

Our engineering team supports OEM and ODM changes to output voltage, enclosure size, connector type, and cable length. Where a project calls for it, we can add dimming control (0-10V or PWM) or adjust the input range. Custom samples are built from your spec sheet and verified against the same test routine used in mass production, so what you approve is what ships.

Why buy factory direct

Buying from the manufacturer removes the trader margin and shortens the path from a design change to shipment. You can also request the exact certificate package your market needs instead of a generic one. Every shipment includes a commercial invoice, packing list, certificate of origin, and CE/RoHS reports, with original documents shipped with the goods.

We supply distributors, lighting brands, and project contractors in 42 countries, with the strongest presence in Europe, North America, the Middle East, and Southeast Asia. Sales and engineering reply in English, Spanish, French, Russian, Arabic, and Chinese, and aim to respond within 1 hour during China business hours (GMT+8).
