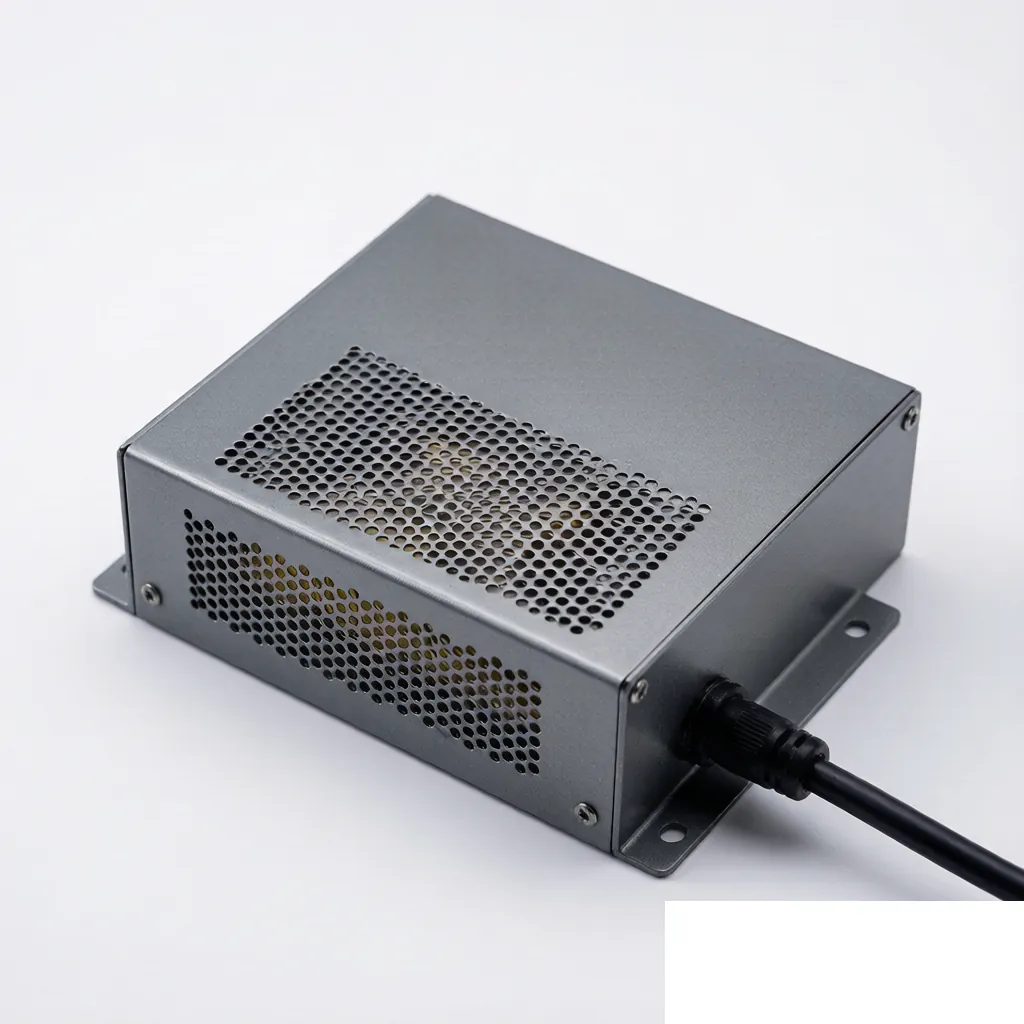

IP65 Rainproof LED Drivers (100-600W)
Metal-case IP65 rainproof LED drivers, 100W-600W, for signage and semi-outdoor.
Overview
Rainproof drivers for signage, billboards, and semi-outdoor installations. Metal housing with ventilation.
- Power range: 100W - 600W
- Protection: IP65
- Input: AC 190-264V
- Output: DC 12/24V
Specifications
| Parameter | Detail |
|---|---|
| Power range | 100W - 600W |
| Ingress protection | IP65 |
| Input voltage | AC 190-264V |
| Output voltage | DC 12/24V |
| Key features | Metal case with mesh vents, corrosion resistant |
Key features
Wide input
AC 190-264V — one SKU covers most international sites.
Dual output
DC 12/24V options fit the common LED strips and modules.
Four protections
Over-voltage, over-current, over-temperature and short-circuit.
Certified
CE and RoHS standard; UL / BIS available per model.
Electrical & environmental
| Parameter | Detail |
|---|---|
| Efficiency | ≥88% |
| Power factor | ≥0.95 |
| Ripple and noise | ≤120mV |
| Ingress protection | IP65 (metal case) |
| Surge protection | 6kV |
| Operating temperature | -30°C to +60°C |
| MTBF | 100,000 hours |
| Warranty | 5 years |
Available power ratings
| Power | Output voltage |
|---|---|
| 100W | 12V / 24V |
| 150W | 12V / 24V |
| 200W | 12V / 24V |
| 300W | 12V / 24V |
| 400W | 12V / 24V |
| 500W | 12V / 24V |
| 600W | 12V / 24V |
Request full specification sheet (PDF)
Frequently asked questions
What is the difference between IP65 and IP67?
IP65 blocks rain and dust but not water jets; IP67 is fully sealed against brief immersion. For weather-exposed signage IP65 is usually enough; for wet or wash-down areas choose IP67.
Can the metal case be used outside?
Yes. The corrosion-resistant metal case suits semi-outdoor signage and billboards. For full outdoor wet use, the IP67 line is the better choice.
Where IP65 drivers are used
IP65 rainproof drivers suit signage, billboards, channel letters, and semi-outdoor installs that face rain and dust but not direct water jets. The metal case with mesh vents sheds heat while keeping weather out.
How to size a rainproof driver
Add the wattage of all connected signs, add a 20% margin, and choose a model above that total. The 190-264V input covers standard commercial mains. Mount the case where air can flow through the vents.
What is built in
Corrosion-resistant metal case, ventilation for high-power runs, and over-voltage, over-current, over-temperature, and short-circuit protection. For full outdoor wet use, choose the IP67 line instead.
Which line fits your project?
Choose IP65 when the install is semi-outdoor — signage, billboards, channel letters, and covered walkways that face rain and dust but never direct water jets. The vented metal case sheds heat better than a sealed potted unit, which is why this line reaches 600W, and it is the value choice for weather-exposed but not water-exposed jobs. If the driver will sit in standing water, be hosed down, or face salt spray, choose the IP67 line instead.
Compare all CHUGAO lines
Four product lines cover most low-voltage LED jobs. Pick by power, protection, and input range.
| Line | LED Adapters (5-200W) | Indoor LED Drivers (50-400W) | IP67 Waterproof LED Drivers (10-400W) | IP65 Rainproof LED Drivers (100-600W) |
|---|---|---|---|---|
| Power range | 5W - 200W | 50W - 400W | 10W - 400W | 100W - 600W |
| Ingress protection | IP20 (indoor) | IP20 | IP67 / IP68 | IP65 |
| Input voltage | AC 100-240V universal | AC 190-264V | AC 90-305V | AC 190-264V |
| Output voltage | DC 12/24/36/48V | DC 12/24V | DC 12/24V | DC 12/24V |
Manufacturing & quality control
Production runs on four dedicated lines fed by SMT assembly and wave soldering, then finished on in-house potting and enclosure lines. Each driver moves through incoming component inspection and automated ICT, then a 48-hour full-load burn-in at elevated temperature before it is packed. On the line we check output voltage, ripple, efficiency, and the four protective functions — over-voltage, over-current, over-temperature, and short-circuit — so a weak unit is caught before it reaches you.
Certifications & compliance
CE and RoHS on every model. UL is per model and costs extra. We send certificate PDFs before you order. BIS for India is available on request.
Every CHUGAO model ships with the documentation your market requires. Certificate PDFs are sent before you place an order, so you can clear customs and meet local electrical rules without surprises.
What is the minimum order quantity?
50 pieces per model for stock items. 500 pieces for custom OEM. We do not accept 1-piece orders.
What is the lead time?
Stock: 3-7 days. OEM: 25-30 days. Samples: 5 days, charged plus shipping, refunded on a bulk order.
What is the warranty?
3 years on stock items. OEM warranty is defined in the contract. Warranty does not cover lightning, water damage, or incorrect wiring.
OEM and ODM
Our engineering team supports OEM and ODM changes to output voltage, enclosure size, connector type, and cable length. Where a project calls for it, we can add dimming control (0-10V or PWM) or adjust the input range. Custom samples are built from your spec sheet and verified against the same test routine used in mass production, so what you approve is what ships.
Why buy factory direct
Buying from the manufacturer removes the trader margin and shortens the path from a design change to shipment. You can also request the exact certificate package your market needs instead of a generic one. Every shipment includes a commercial invoice, packing list, certificate of origin, and CE/RoHS reports, with original documents shipped with the goods.
We supply distributors, lighting brands, and project contractors in 42 countries, with the strongest presence in Europe, North America, the Middle East, and Southeast Asia. Sales and engineering reply in English, Spanish, French, Russian, Arabic, and Chinese, and aim to respond within 1 hour during China business hours (GMT+8).
